Wall Summary

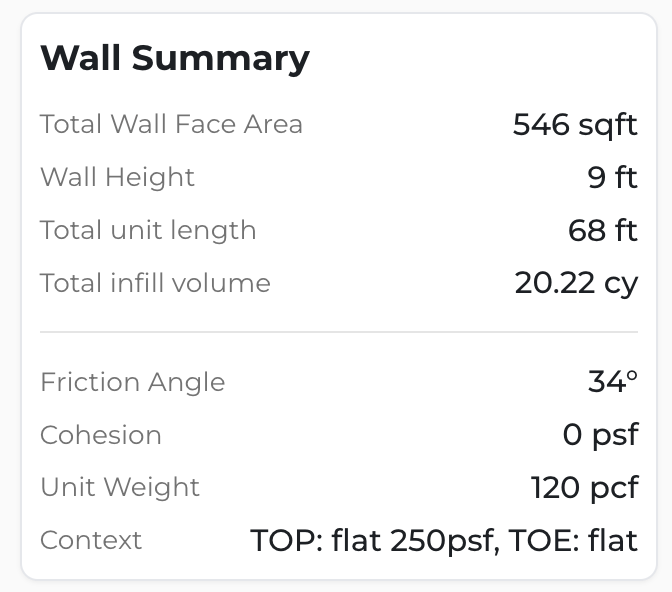

The Wall Summary is located in the upper left hand corner of the screen. It includes important information about the active retaining wall. It includes information like Face Area, Wall Height, Unit Length, Infill Volume, Friction angle, Cohesion, Unit Weight, and Context. This section is purely informational.

The Wall Summary provides quick access to critical wall specifications including:

• Face Area - Total surface area of the wall face
• Wall Height - Maximum height of the retaining wall
• Unit Length - Linear length of the wall
• Infill Volume - Volume of material required for infill
• Friction Angle - Soil friction parameters
• Cohesion - Soil cohesion values
• Unit Weight - Weight per unit volume
• Context - Site-specific conditions and loading
